Project Indoor Explorer

Intent of this page

This page attempts to document the project from a conceptual perspective. Code installation and usage are left (mostly) to the parent repository at ugv_ws or repositories referenced therein.

Project Goal

Autonomously explore and map an indoor environment in simulation and reality. Prior knowledge of the environment - or previous exploration and mapping by a human operator - is not allowed.

Hardware

Robot UGV02x (my versioning!) is based on the Waveshare UGV02 skid-steer platform (ref). The platform is customized via an NVIDIA Orin AGX compute module, with usb-connected lidar and depth-camera, supported by a 100Wh Li-Ion battery (see the parts list in table 1). The system diagrams in mobile and dev configurations are shown in figures 1 and 2.

     flowchart BT
        A[UGV02] <--> |usb| B[usb_isolator]
        B <--> |usb| C[Orin]
        D[battery] --> |usbc| C
        E[lidar] --> |usb| C
        F[depth camera] --> |usbc| C
        C <--> G[802.11ac\nwireless]
        C <--> H[500GB\nNVME\nSSD]
Fig 1: UGV02x Robot connectivity (mobile config)
     flowchart BT
        AA["12.6V\nAC Adapter"] --> |charging port| A
        A[UGV02] <--> |usb| B[usb_isolator]
        B <--> |usb| C[Orin]
        D[battery] --> |usbc| C
        E[lidar] --> |usb| C
        F[depth camera] --> |usbc| C
        C <--> G["wired\nethernet"]
        C <--> H[500GB\nNVME\nSSD]
        I[19.5V\nAC Adapter] --> C
Fig 2: UGV02x Robot connectivity (dev config)

In dev config, the Orin is connected via wired ethernet and is powered from an external transformer from 120VAC. The purpose of the USB isolator is to isolate the battery system of the Waveshare UGV02 robot from the Orin/sensor battery shown - they only share a ground. In fact, the USB isolator had to be electrically modified to disconnect the supply voltage passthrough from the orin. Any external battery to buffer the UGV02 batteries should be plugged into the UGV02 charging port. The battery configuration shown results in many hours of robot operation.

The Waveshare UGV02 contains a ESP32 microcontroller with connected IMU, 4 motor PWM controllers, and 2 wheel encoders (on the front wheels). See figure 3.

    digraph G {
      layout=neato; overlap=false; splines=true; node [shape=box, fixedsize=false, width=1, height=0.5];
      L1 [label="LF motor/\nencoder"] [pos="0,1!"];
      L2 [label="LR motor"] [pos="0,0!"];
      C1 [label="USB/UART"][pos="2,1.5!"];
      C2 [label="ESP32\ncontroller"][pos="2,0.5!"];
      C3 [label="IMU"][pos="2,-0.5!"];
      C4 [label="3x18650\nbatteries"][pos="2,-1.5!"];
      R1 [label="RF motor/\nencoder"] [pos="4,1!"];
      R2 [label="RR motor"] [pos="4,0!"];
      L1 -> C2; R1 -> C2; C2 -> C1; C3 -> C2; C4 -> C2; L2 -> C2; R2 -> C2;
    }
Fig. 3 — UGV02 internal components

The Bill of Materials for UGV02x follows (table 1).

Manuf. Model Description Count
Waveshare UGV02 skid-steer robot platform 1
NVIDIA AGX Orin 64GB Compute node 1
Samsung 970 EVO M.2 SSD 500GB 1
LDRobot STL-19P 2D lidar 1
Intel Realsense D435 RGBD camera 1
Jhoinrch Rho 5 Mark II USB Isolator (modified to remove Vcc connection on the UGV02 side) 1
Goal Zero Sherpa 100PD Li-Ion 100 Wh rechargeable battery 1
Samsung INR 18650-35E 18650 Li-Ion rechargeable flat-top (not button-top) battery. 3500mAh. 3
Central Computers USB 3.2 Gen 2 Type-C Cable 3 ft. Depth Camera/Orin Power cable (cable ratings: 20Gbps, 20v 5A) 2
Central Computers USB Type-C 90 degree Male to Female Adapter Depth Camera data cable management adapter (ratings: 40Gbps, 48v 5A) 2
DongGuan Simer Electronics Co, LTD SK90B195462 AC Adapter Orin power supply. Output 19.5V @ 4.62A 1
China RXW-0698-12.6V2A batter charger AC Adapter UGV02 battery charger power supply. Output 12.6V @ 2A 1
3M RF6730 Scotch Extreme Fasteners Adhesive-backed high-strength velcro 1x3 inch strip pairs for robot component connections 8
Table 1 — UGV02x parts list.

Firmware: UGV02 ESP32

For this project, the UGV02 is running the ugv_base_ros ESP32 firmware, applied to the robot via the ESP32 firmware updater. See the Waveshare UGV02 Wiki section on firmware updates for more details. This firmware is quite accessible via the Arduino IDE and future tweaks are anticipated. For example, the PWM rate seems awfully high (100kHz). Figure 4 shows the basic functions of the firmware as it applies to the ROS2 interface in terms of wheel control.

     flowchart LR
        subgraph O["Orin ugv_main ROS2 pkgs"]
            direction TB
            A["ROS2\n/cmd_vel\ntopic"] --> BLR["inverse\nkinematics"]
            BLR --> CLR["L/R\nang. vel"]
            CLR --> DLR["JSON"]
        end
        subgraph FW["UGV02 ESP32 firmware"]
            direction BT
            D["L wheel encoder"] --> CL
            B["L/R ang. vel\ntargets"] --> CL["L wheel\nang. vel PID"]
            B --> CR["R wheel\nang. vel PID"]
            E["R wheel encoder"] --> CR
            CL --> LP["L wheel PWM"]
            CR --> RP["R wheel PWM"]
        end
        DLR --> |usb| B
Fig 4: wheel (speed) control

Since the inverse kinematics are on the ROS2 side, I do some nominal understeer compensation by inflating the true lateral wheel separation (by a factor of 2). Figure 5 shows the firmware functions regarding transmission of robot state back to ROS2 via USB.

     flowchart LR
        subgraph FW["UGV02 ESP32 firmware"]
            direction BT
            D["IMU"] --> E["JSON polling\nencode\n(20Hz)"]
            F["L wheel\nencoder"] --> E
            G["R wheel\nencoder"] --> E
            H["voltage"] --> E
        end
        subgraph O["Orin ugv_bringup ROS2 pkgs"]
            direction TB
            OB["JSON polling\n(1kHz) decode"]
            OB --> T1["ROS2\n/imu_data_raw\ntopic"]
            OB --> T2["ROS2\n/imu_mag\ntopic"]
            OB --> T3["ROS2\n/odom_raw\ntopic"]
            OB --> T4["ROS2\n/voltage\ntopic"]
        end
        E --> |usb| OB
Fig 5: robot sensor feedback

Software packaging: Linux

UGV02x Linux software consists of existing ROS2 Humble packages, custom ROS2 device and project packages, and modified versions of the Waveshare UGV02 ROS2 packages/workspace Waveshare ugv_ws. A typical setup for the mobile (real) robot environment is shown in figure 3. All Linux compute platforms are running Ubuntu 22.04 and ROS2 Humble. No containers or VMs are used in this project. Generally, simulation and development are performed on a capable (memory, disk, compute, etc.) Linux computer. The configuration of this computer also makes it useful as a top level orchestrator/observer for exploration and mapping. The details of navigation and exploration algorithms used in this project are discussed in the Exploration and Navigation section below.

The UGV02x Orin ROS2 SW stack

The Linux manager/dev/simulation node SW stack

A mobile deployment utilizing 802.11ac wireless (as supported by the Orin AGX out-of-the-box) is shown in figure 6. The manager computer and wireless router can be run entirely on battery - for remote operations (a different project!).

    digraph G {
      layout=neato; overlap=false; splines=true; compound=false;
      node [shape=box, fontname="system-ui"];

      subgraph cluster_L {
        label="manager";
        style="rounded,dotted";
        color="#60a5fa"; penwidth=2;
      L0 [label="", shape=box, style=invis, fixedsize=true, pos="0,2.5!", width="1.75",height="0.25"];
      L1 [label="wireless\nrouter",pos="0,1.5!",fixedsize=false];
      L2 [label="linux host",pos="0,0.5!",fixedsize=false];
      L3 [label="battery\n(optional)",pos="0,-0.25!",fixedsize=false];
      L4 [label="",shape=box, style=invis, fixedsize=true, pos="0,-0.75!", width="1.75",height="0.25"];
      }

      subgraph cluster_R {
        label="UGV02x";
        style="rounded,dotted";
        color="#60a5fa"; penwidth=2;
      R0 [label="", shape=box, style=invis, fixedsize=true, pos="3.5,2.25!", width="1.75",height="0.25"];
      R1 [label="PCI-E\n802.11ac\nwireless", pos="3.5,1.75!", fixedsize=false];
      R2 [label="Orin AGX",                 pos="3.5,0!", fixedsize=false];
      R3 [label="", shape=box, style=invis, fixedsize=true, pos="3.5,-0.5!", width="1.75",height="0.25"];
      }

      // Edges
      L1 -> L2 [dir=both];
      R1 -> R2 [dir=both];
      L1 -> R1 [dir=both, style=dotted];
    }
Fig 6: Mobile robot operation. We assume the UGV02x is in mobile configuration.

Simulation

For the simulated goal, procedurally generated worlds are used to test appropriate functionality in the SW and HW stack. This is described in World Generation. Figure 7 shows a simulated scene which has been tuned to provide a set of obstacles of varying heights through which the robot must explore to complete the project goal. These objects are not all imaged in the robot lidar - some are below the lidar height and will only be imaged in the depth camera - when the robot is nearby.

Fig 7: Simulated scene for the project goal. This .glb file is interactive!

The simulated UGV02x robot is provided via XACRO file in Gazebo UGV02x robot and is shown in figure 8. This robot model is intentionally not photo-realistic. The point of this robot model is to accurately represent the spatial and inertial aspects of the robot with a minimum of geometric complexity. The robot XACRO file is also used to compute the static transforms of the real robot during operation.

Fig 8: Simulated robot. This .glb file is interactive!

Simulation is performed via the (Ignition) gz sim version of Gazebo - which, for ROS2 humble, is Gazebo Garden. This is not to be confused with Gazebo Classic or later versions of (Ignition) Gazebo. Simulation via IsaacSim was partially completed and partially successful, but has been set aside due to fundamental limitations of IsaacSim - specifically, IsaacSim does not support the necessary nuances of friction which allow the robot wheels to realistically slip sideways - a critical feature for skid-steer robots. Well, skid-steer robots that turn.

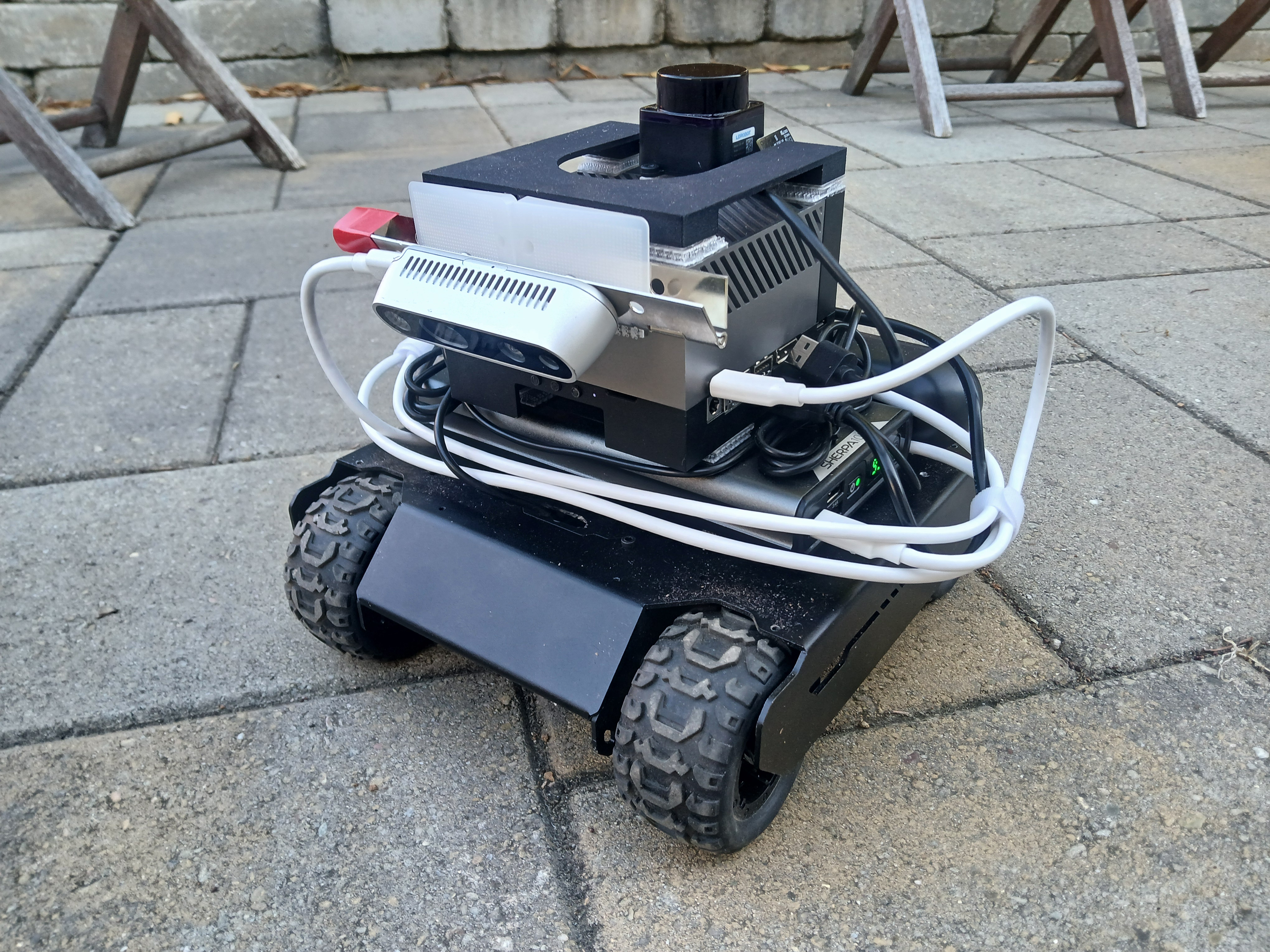

For immediate comparison, I include a photo of the real robot (in mobile configuration) in figure 9.

Fig 9: Real robot. This .jpg file is NOT interactive!

Odometry: sim vs real

For the purposes of timely project completion, odometry is computed differently in simulation and reality. A future project will involve - minimally - fusing IMU and odometry data for a low-level estimate of odometry. The necessary data acquisition and analysis was deemed a rabbit-hole of excessive depth for the purposes of this project.

     flowchart TD
      A["/scan"] --> B[rf2o_laser_odometry]
      B --> C["/odom"]
      B --> D["/tf"]
Fig 10: Real robot odometry
     flowchart TD
      A[Gazebo diff drive] --> B["/odom"]
      A --> C["/tf"]
Fig 11: Simulated robot odometry

As shown in figures 10 and 11, odometry computation - and subsequent updates to the /tf tree - happen differently for the real and simulated robots. For the real robot, odometry is entirely calculated from the laser scan updates via rf2o_laser_odometry. As mentioned above, this is a temporary workaround. For the simulated robot, odometry is computed from the wheel velocities resulting from the /cmd_vel commands sent to the robot. The wheel separation parameter of the simulated robot kinematics has been calibrated (increased) so that - given the wheel slip settings in the simulator - the simulated robot motion follows the odometry fairly closely. This assumes the slip characteristics of the floor are fixed and known. From the point of view of the ROS2 nav2 SW stack, it is useful to review the purpose of odometry: odometry for nav2.

Depth camera and Lidar processing: sim vs real

Depth camera and Lidar processing is implemented differently for the simulated and real robots. This stems from two issues:

  1. Gazebo Garden (a sub-version of Gazebo Fortress) does not easily allow for the processing of the depth image stream into point clouds. As far as I can tell, Gazebo is not providing the proper camera extrinsics to properly convert rgba or depth images into a point cloud. However, Gazebo Garden DOES provide a proper point cloud directly. I attempted to address this issue via introducing a camera optical frame in the transform tree (as suggested in the ROS2 Gazebo community), but this did not fix the problem (it did improve it!).
  2. Conversely, the (actual) Intel D435 ROS2 package does NOT provide a working point cloud directly from the camera. This appears to be a very version-specific issue, as an apt update during robot development eliminated my ability to get point clouds from the camera. Driver regression did not seem to address the issue. Never a dull moment!

These two problems conspire to make the processing different for sim and real robots. The solution I worked out is shown in figures 12 and 13. A full dump of the real-time ROS2 computation graphs (from rqt) are provided in the section ROS2 Exploration and Navigation section below.

     flowchart TD
      A["camera"] --> C["/rgb"]
      A --> D["/depth"]
      B[lidar] --> E["/scan"]
      C --> F[rgbd_sync]
      D --> F
      D --> G[point_cloud_xyz]
      F --> H[rgbd_image]
      G --> I["/camera/cloud"]
      H --> J[rtabmap]
      E --> J
      subgraph K[NAV2]
        direction LR
        L[global_costmap]
        M[local_costmap]
      end
      E --> L
      E --> M
      I --> L
      I --> M
      J --> K
Fig 12: Real robot camera/lidar processing
     flowchart TD
      A["camera"] --> C["/rgb"]
      A --> D["/points"]
      B[lidar] --> E["/scan"]
      D --> F[voxel_filter]
      F --> G["/camera/cloud"]
      G --> H[point_cloud_fuser]
        E --> H
      C --> I[rtabmap]
      H --> I
      subgraph J[NAV2]
        direction LR
        K[global_costmap]
        L[local_costmap]
      end
      E --> K
      E --> L
      G --> K
      G --> L
      I --> J
Fig 13: Simulated robot camera/lidar processing

Depth camera calibration

The Intel Realsense camera is not quite viewing the world from the perspective one might expect. In particular, when running in the mode used in this project, the resulting depth cloud is not centered on the camera housing - it is more or less centered on the left camera aperture. One way to deal with this is to develop a calibration procedure for the static transform tree of the depth camera sensor.

Exteroceptive sensor transform tree

The real and simulated robots almost share an xacro file - that is, the file which defines the component physical relationships and properties. The difference between the two files are the transform settings of a calibration joint for the depth camera. This calibration is defined in both files. The simulated robot has a unit calibration transformation, whereas the real robot does not. The goal of calibration is to find the calibration transform. In this section, we only discuss the depth camera calibration. Also, we assume that the intrinsic and extrinsic calibration(s) of the depth camera have already been done - there are tools for this in the intel SW.

     flowchart BT
      BF(["base_footprint"]) --> BFJ["base_footprint_joint"]
      BFJ --> BL(["base_link"])
      BL --> BJ["battery_joint"]
      BJ --> BAL(["battery_link"])
      BAL --> OJ["orin_joint"]
      OJ --> OL(["orin_link"])
      OL --> LJ["lidar_joint"]
      LJ --> LL(["lidar_link"])
      OL --> DJ["d435_joint"]
      DJ --> CPL(["camera_pre_link"])
      CPL --> DCJ[["d435_calibration_joint"]]
      DCJ --> CL(["camera_link"])
Fig 14: The exteroceptive sensor transform tree. Each rounded node is a coordinate frame. Each rectangular node is fixed joint - a transform between frames. The calibration joint in question is in a special rectangle.

Calibration process

The process for determining the calibration transform is as follows:

The above calibration process also works if I offset the camera housing (to the left, for example) in the shared part of the robot and simulated xacro file. As well, the process will also work if I do not offset the real camera to the left of center (as I have done - see figure 19). I have decided to offset the real camera so that it produces a more left-right symmetrical depth FOV - however, it still provides more depth points on the left (see figure 18). The results of the calibration process are shown in the following 4 figures.

real_robot_calibration_snapshot
Fig 15: The real calibration scene.

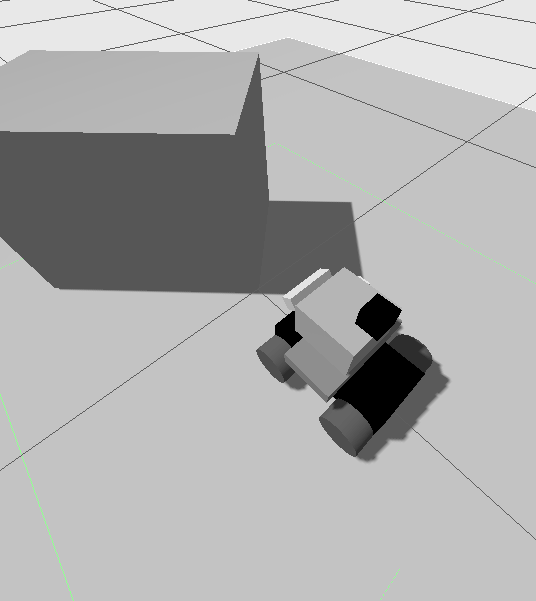

robot_calibration_snapshot
Fig 16: The simulated calibration scene.

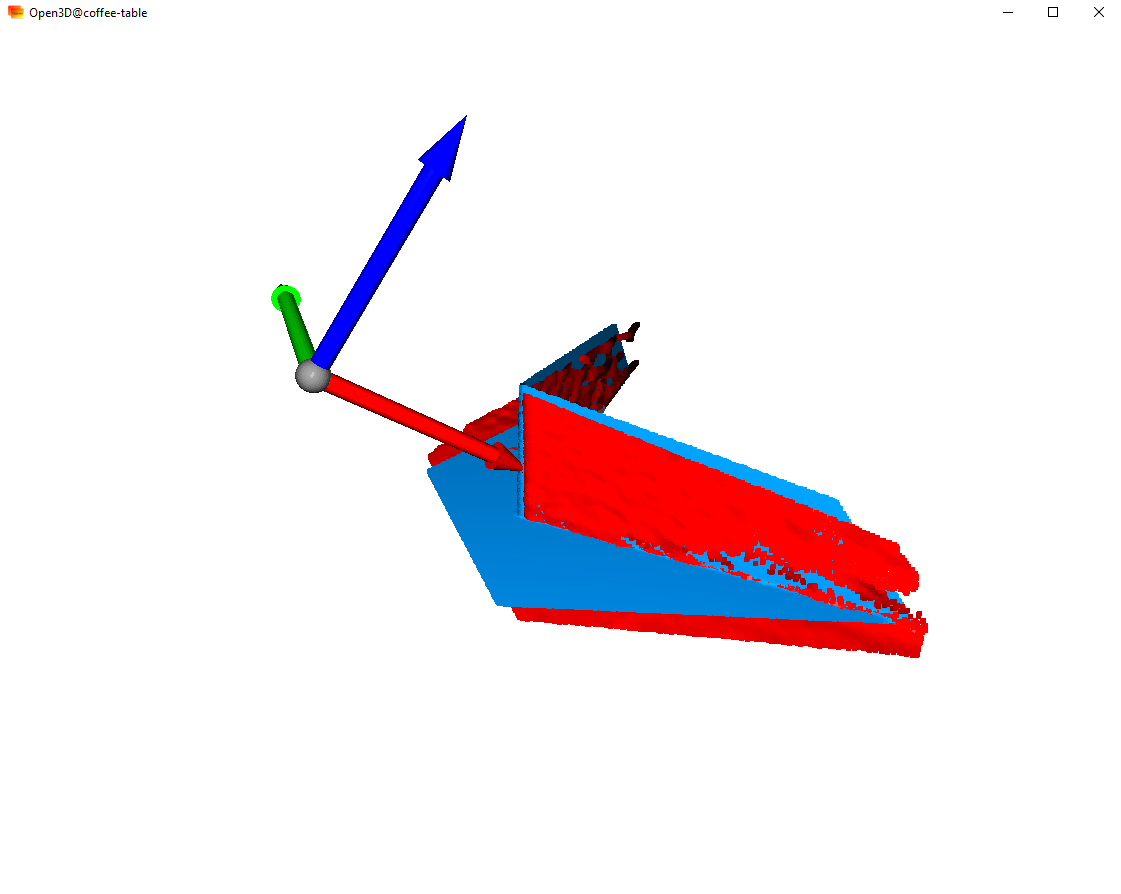

robot_calibration_pcd_raw
Fig 17: Raw point clouds (before calibration).

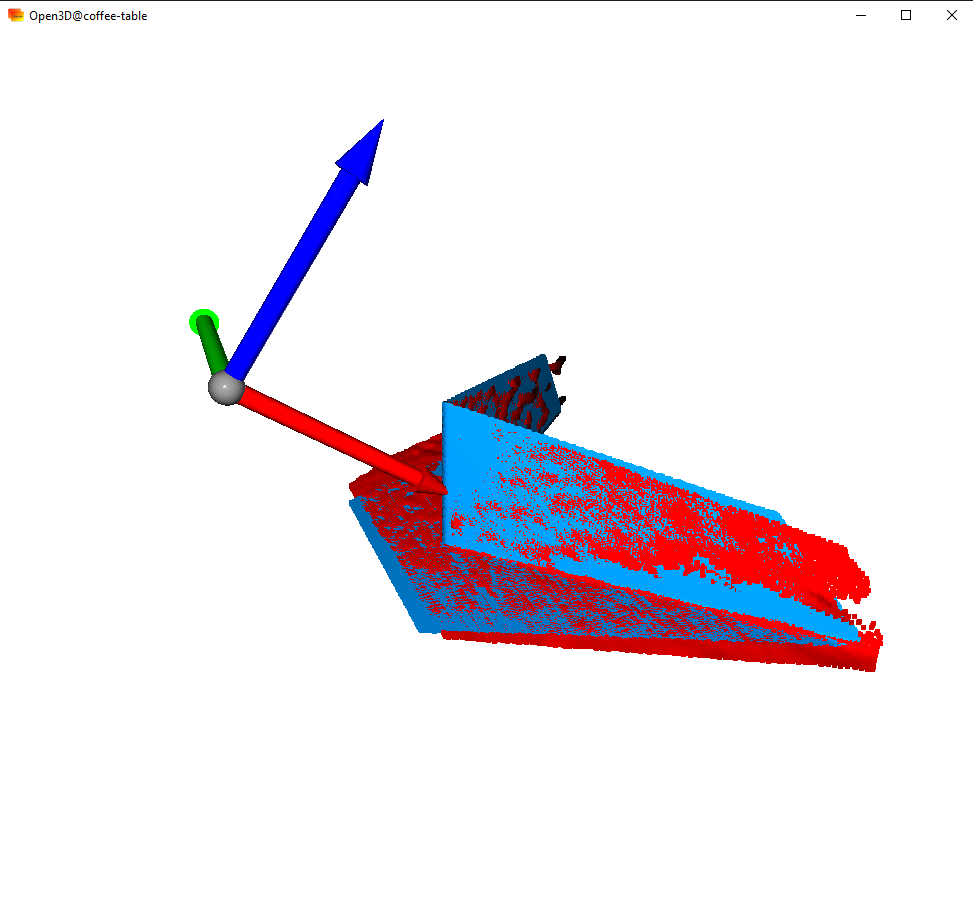

robot_calibration_pcd_cal
Fig 18: Calibrated point clouds.

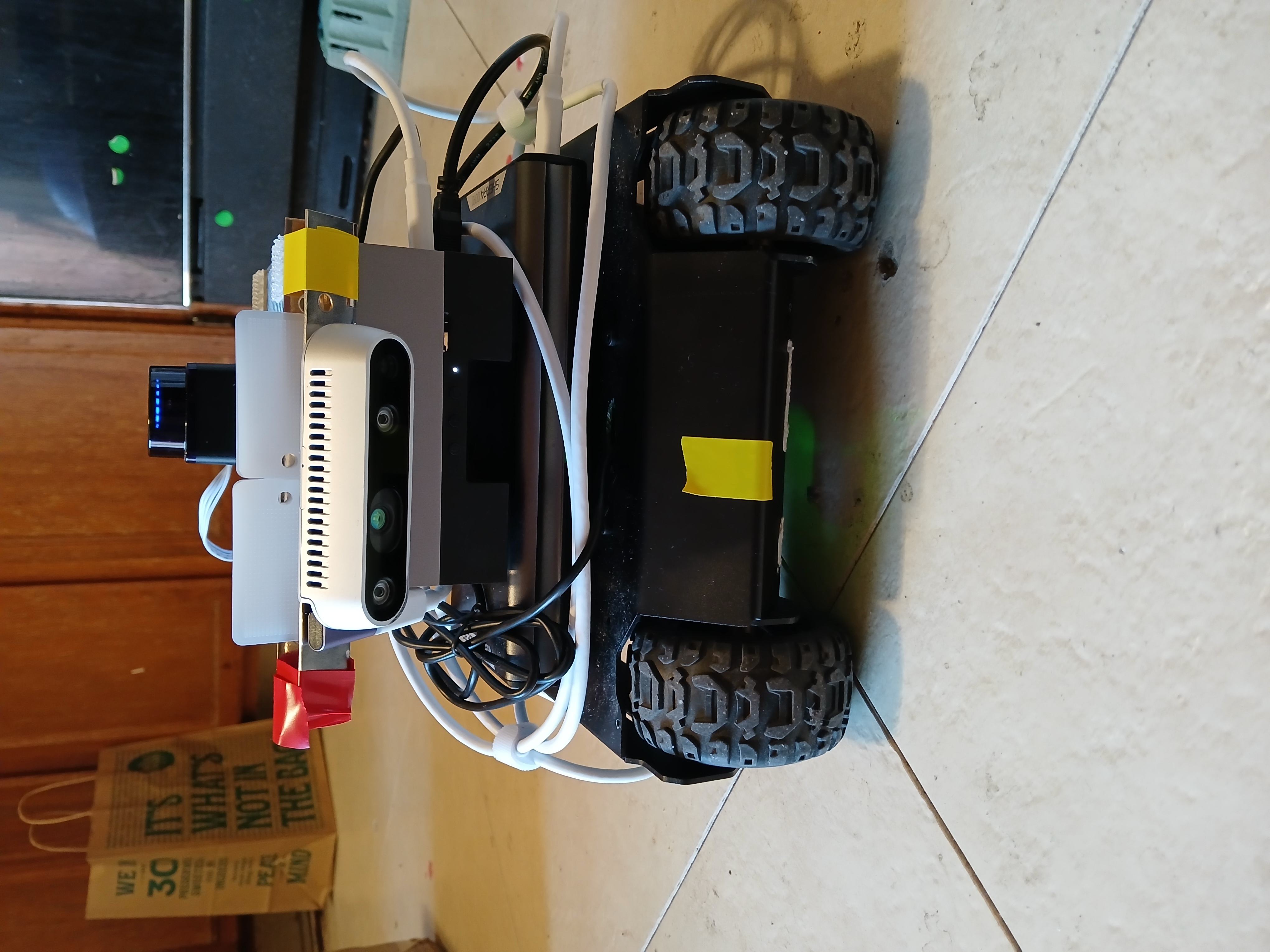

real_robot_calibrated
Fig 19: The real robot after calibration and camera repositioning. The centerline of the robot is the right side of the yellow tape on the robot chassis.

Exploration and Navigation

Exploration and Navigation: Algorithm overview

The computation graphs for the real and simulated robot are shown in figures 20 and 21. These are constructed automatically via rqt from a running ros2 SW stack. Click on them and pan and zoom away.

ROS Graph thumbnail
Fig 20: Real robot computation graph (navigable SVG).

The detail in these graphs (figures 20 and 21) is pretty challenging to digest, but becomes increasingly useful as you tune up your SW stack to the goals at hand. Zoomed-in parts of this computation graph are shown below.

ROS Graph thumbnail
Fig 21: Simulated robot computation graph (navigable SVG).

In order to attain the project goals, I have used a custom autonomous frontier exploration implementation Frontier exploration. While there are many similar frontier exploration packages out there, many of them depend on an initial exploration of the environment by a human (tele)operator. This is not allowed by the project goals. The explore_lite node is an example of this - while it doesn't strictly demand initial human exploration, this node implicitly assumes that it makes sense to characterize frontier areas by their centroids. Well, what if you start out in a uniformly unknown environment? You are at the centroid of the frontier already!

The frontier_explorer node depends on Nav2 to interact with the environment as the frontier_explorer generates and attempts goals. Nav2 is a complex SW stack with many interacting components. A Nav2-based project involves selecting, assembling and tuning navigation algorithms. Some algorithms may eventually yield better results, but are more challenging to tune. The simplified diagram below (figure 22) attempts to represent Nav2 operation for the purposes of this project.

     flowchart TD
      A["rtabmap (SLAM)"] --> B["octomap_grid"]
      A --> TF1["map --> odom"]
      OD["/odom"] --> TF2["odom --> base_link"]
      TF1 --> TF["/tf"]
      TF2 --> TF
      TF --> GC
      B --> GCS
      D["/scan"] --> GCVG
      E["/camera/cloud"] --> GCVG
      subgraph GC["Nav2 global_costmap"]
         GCS["static_layer"]
         GCVG["voxel_layer"]
         GCS --> GCI["inflation_layer"]
         GCVG --> GCI
      end
      FE["frontier_explorer"] --> G
      G["Goal"] --> NPP
      GCI -->|2D map| NPP["Nav2 Grid Based Path Planner"]
      NPP --> T["path to goal"]
      TF --> LC
      D["/scan"] --> LCVG
      E["/camera/cloud"] --> LCVG
      subgraph LC["Nav2 local_costmap"]
         LCVG["voxel_layer"]
         LCVG --> LCI["inflation_layer"]
      end
      T --> NP
      LCI --> |2D map| NP["Nav2 Controller:\nRotation Shim Controller +\nRegulated Pure Pursuit"]
      NP --> VS["Nav2 Velocity Smoother"]
      VS --> CV["/cmd_vel (robot)"]
Fig 22: Nav2 at work.

frontier_explorer generates goals for Nav2 until the frontiers in the map are exhausted. Fig 23 shows (roughly) the functionality of frontier_explorer.

     flowchart TD
      A["rtabmap (SLAM)"] --> B["/map"]
      B --> F["frontier_explorer"]
      F --> G["goals"] --> N2["Nav2 Planner"]
      G -.-> RV["rviz2"]
      F --> H["blacklisted regions"] -.-> RV
      F --> I["frontier regions"] -.-> RV
Fig 23: frontier_explorer at work. Rviz2 may not be running on the same host (i.e, the (real) robot).

Figure 23 also shows the production of map overlays (goals, blacklisted regions and frontier regions) which are displayed via rviz2 (generally on a non-robot host on the LAN). These products (as well as Nav2 Rviz2 products) are shown in the exploration movies in the results section below.

Exploration and Navigation: Algorithm tuning

There are a lot of parameters and configurations involved in a functioning exploration SW stack. There are 3 principal components to be tuned: frontier_explorer, rtabmap and Nav2 . Nav2 tuning includes the Nav2 planner, the Nav2 controller, and the Nav2 behavior tree (BT). The exact settings for these are included in the files in the parent github repo:

Some explanation and general discussion of these configuration files is called for:

Exploration and Navigation: Orchestration

The project goal is achieved by the exploration_orchestrator.py. This script coordinates and documents the exploration episode by interacting with the frontier_explorer and the rviz2 rviz_record plugin. On completion of exploration - while all nodes are still running - it also triggers the collection of a bag file snapshot of interesting quantities via rosbag2_py. Figure 24 shows this functionality when operating the real robot in mobile mode:

     flowchart TD
        subgraph R["Robot (Orin)"]
            F["frontier_explorer"]
            S["UGV02x nodes"]
            F <--> S
        end
        subgraph E["manager"]
            RV["rviz2 (rviz_record plugin)"]
            O["exploration_orchestrator.py"]
            O --> |"/rviz_record/start\n/rviz_record/stop"| RV
            RV --> EM["Exploration movie"]
        end
        O --> |"/explore"| F
        F --> |"/exploration_done"| O
Fig 24: exploration_orchestrator at work.

Results

Indoor exploration

Figure 25 shows the results of indoor exploration by the robot. The environment is a bit cluttered with some low-lying (below-the-lidar) items. The robot cautiously discovers all reachable areas.

Fig 25: A movie of indoor exploration. The map follows the standard Nav2 rviz format, with some additions by the frontier_explorer. Dark gray is unknown, light gray is unoccupied space, green is frontier, blue circles are blacklisted (unreachable) goals and black is the map (occupied space). The occupied space map (from rtabmap) used is the 2D projection of the 3D occupancy grid (see figure 28).

While the exploration is for the most part successful, there are some interesting behaviors to be addressed in upcoming projects. First, the lidar-based odometry does seem noisy, with the robot jumping around a bit (say ~2cm magnitude). This may be the reason the robot sometimes moves very hesitantly when trying to skirt around obstacles. An upcoming odometry/sensor fusion project will look into this. Second, there are some strips between floor sections in this indoor environment of roughly 1cm in height. As the robot passes over these, the depth camera sees phantom obstacles - the robot vertical is not corrected for (the floor ahead seems "high" as the robot rocks forward off the strip). This is potentially addressable via the on-board (camera and robot) IMUs, although Nav2 did not decide to make this phantom obstacle permanent - it cleared almost immediately as the robot ran on the flat floor after crossing the strip. This sort of thing will really become important on natural outdoor terrain. Finally, the map is fairly well constructed, although loop closure is clearly a challenge for rtabmap in various areas - with multiple images of walls appearing. This indoor environment is roughly U-shaped, and the arms of the U are distorted. But the basic connectivity of the open space is preserved.

Exploration of the simulated scene

Figure 26 shows exploration of the simulated scene. The simulated scene is rectangular with cylindrical obstacles of various radii (see figure 6).

Fig 26: A movie of exploration of the simulated scene. The map follows the standard Nav2 rviz format, with some additions by the frontier_explorer. Dark gray is unknown, light gray is unoccupied space, green is frontier, blue circles are blacklisted (unreachable) goals and black is the map (occupied space). The occupied space map (from rtabmap) used is the 2D projection of the 3D occupancy grid (see figure 20).

This exploration shows that the robot can explore tight spaces and deal with obstacles only visible in the depth camera - it is quite adaptable with path replanning. Note that rtabmap has had significant issues with loop closure. For this combination of sensors and scene, it's possible a different SLAM algorithm would be better. The features in a simulated scene can be less rich - for this purpose I added the floor texture. But the primary problem for rtabmap may be the preponderance of flat floor in the depth map from the camera.

Other interesting exploration products: real robot/indoors

On completion of mapping, the orchestrator collects a number of 2D and 3D mapping products. octomap_grid (figure 27) is the 2d projection of the occupied space (figure 28).

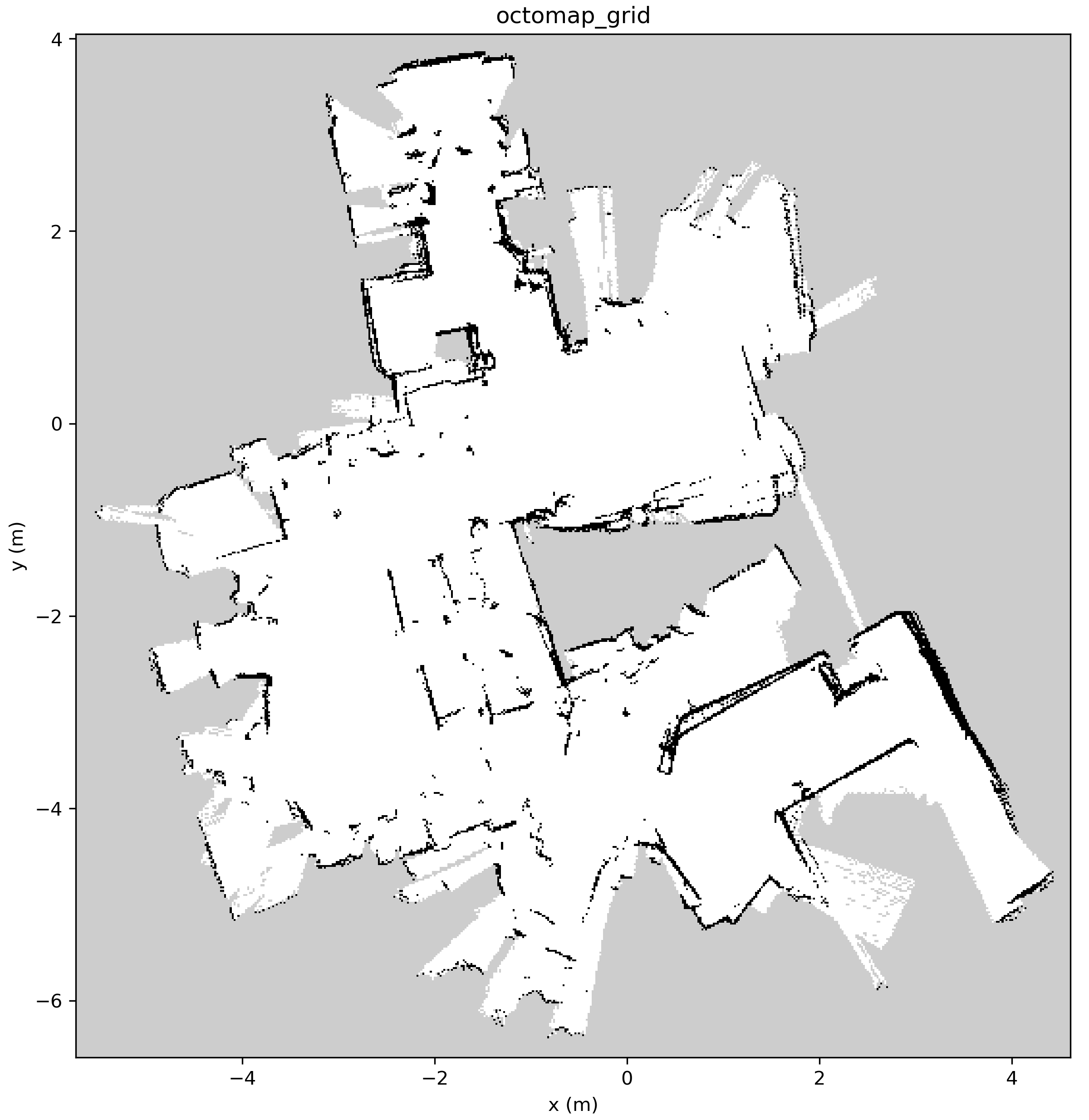

octomap_grid
Fig 27: Final mapping product: 2D.

Figure 28 is the final point cloud collected over the course of robot exploration. If you look carefully, there is some imaged clutter and imaging of the lower extremities of things. Figure 28 can be manipulated extensively via pan and zoom. Note there are several clusters of points at negative Z. Presumably the depth camera is still generating artifacts.

octomap_occupied_space
Fig 28: Final mapping product: 3D.

Other interesting exploration products: simulated robot/scene

map
Fig 29: Final mapping product: 2D.

Big picture Lessons learned

Next steps
